High quality mineral cutting Machine ball mill for sale

FOB Reference Price:Get Latest Price
$1,000.00 - $10,000.00 / Set | 1 Set/Sets (Min. Order)
Power(W):
18.5-370kw
Model Number:
different model
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Capacity(t/h):
4-15t/h
Place of Origin:
Jiangxi, China
Brand Name:
WKD
Dimension(L*W*H):
various
Weight:
3.4-42 t
Certification:
ISO9001:2008
Warranty:
1 year
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Application:
Ore
The Machines classification:
Grinder Chemical Industry
Spare parts supplying:
half year
key words:
ball mill
Color:
Required
Installation:
Engineer's Guide
After sale service:
Techniacal Support
Supply Ability
Supply Ability:
800 Set/Sets per Year
Packaging & Delivery
Packaging Details
We can package according your requirements .If you have any request about products, we can negotiate it.
Port
Shengzhen /Xiamen/ ningbo/ Shanghai
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 15 To be negotiated

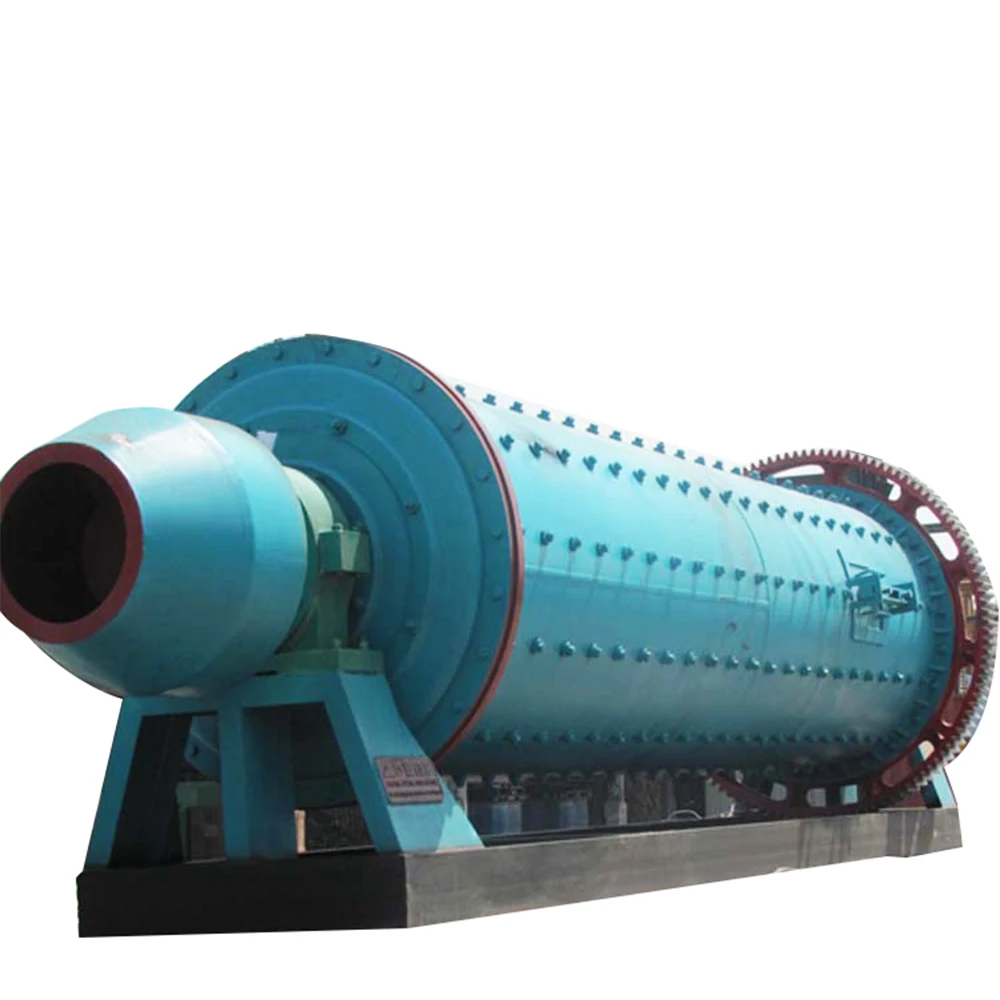

Product Description

Energy-Saving Ball Mill are generally used to grind material 1/4 inch and finer, down to the particle size of 20 to 75 microns. To achieve a reasonable efficiency with ball mills, they must be operated in a closed system, with oversize material continuously being recirculated back into the mill to be reduced. Various classifiers, such as screens, spiral classifiers, cyclones and air classifiers are used for classifying the discharge from ball mills. Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry process and the wet process. It can be divided into tabular type and flowing type according to different forms of discharging material.

Feature

1. The transmission machinery of Energy-saving grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%

2. Energy-saving grate ball mill adopts groove-type circular lining plate that is instrumental in increasing contact areas of iron balls and ores, which enhances grinding action and ore lifting capacity and decreases energy consumption.

3 .Energy-saving grate ball mill adopts whole milling house, which makes it easy for construction and installation.

4.Energy-saving grate ball mill has bigger discharge opening and huge processing capacity.

5. Energy-saving grate ball mill is equipped with oil-mist lubrication device which guarantees smooth operation of gears.

Advantage

1) Ball mill is an efficient tool for grinding many materials into fine powder.

2) The ball mill is used to grind many kinds of mine and other materials, or to select the mine

3) Ball mill is widely used in building material, and chemical industry.

4) There are two ways of grinding: the dry way and the wet way.

5) Ball mill can be divided into tabular type and flowing type according to differentexpelling mine

Technical Parameters

Model

Speed (r/min)

Max. weight of balls (t)

Input size (mm)

Output size (mm)

power (kw)

Capacity (t/h)

Weight(t)

Φ900×1800

37

1.8

≤15

0.075-0.89

15

0.5-2

3.4

Φ900×2100

37

2.3

≤15

0.075-0.4

18.5

0.4-2

3.9

Φ900×3000

35

3.85

≤25

0.075-0.4

30

1.1-2.5

7.78

Φ1200×2400

35

4.6

≤25

0.075-0.4

30

1.3-3.2

8.65

Φ1200×2800

35

5.4

≤25

0.075-0.4

37

1.5-3.7

10.02

Φ1200×4500

35

8.6

≤25

0.075-0.4

45

2.7-6.79

14

Φ1500×3000

29

9

≤25

0.047-0.4

75

3.3-8.2

14.12

Φ1500×3500

29

10.5

≤25

0.047-0.4

75

3.3-8.5

15.64

Φ1500×4500

29

13.5

≤25

0.047-0.4

90

4.5-12

20

Φ1500×5700

29

17

≤25

0.047-0.4

110

2.6-14

21.5

Φ1830×3000

24

13.5

≤25

0.047-0.4

135

4-15

28

Φ1830×3600

24

14

≤25

0.047-0.4

135

4-15

29

Φ1830×4500

24

20

≤25

0.047-0.4

155

4-19

32

Φ1830×7000

24

31.5

≤25

0.047-0.4

210

6-22

36.5

Φ2100×3000

22

18

≤25

0.047-0.4

210

6.4-28

40.79






Packaging & Shipping

Shipping

1.small parts are wooden box package.

2.the major machine nude packing cintainer,or upon customers' requirement.

3.export standard.

4. shipped in 5-25 days after payment.


Payment Terms

1. Payment: T/T, L/C

2. MOQ: 1set

3. Warranty : 12 months.



Our Services



1. One year guarantee.

2. Sample testing.

3. Process flow design and drawing.

4. Engineer available for over seas installation and training.

5. after sale service, such providing spared p arts.
