diesel engine / AC motor power small stone crusher for hard material

FOB Reference Price:Get Latest Price
$699.00 - $9,999.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hammer Crusher
Application:
Mining
Motor Type:
AC motor/ diesel engine
Power(W):
11kw
Capacity(t/h):
0.8-1.5t/h
Place of Origin:
Jiangxi, China
Brand Name:
WKD
Model Number:
WKD11KW
Dimension(L*W*H):
According to model
Weight:
According to model
Certification:
ISO9001:2008
Product name:
Sand Stone Crusher
Installation:
Technical Guidance
Price:
Favorable
Color:
Customizable
OEM:
Yes
Warranty:
1 year, 1 Year
Brand name:
WKD
Driving equipment:
Motor/ diesel engine
Feeding size:
<=30mm
Discharge size:
<=1mm
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packaging: We can package according your requirements .If you have any request about products, we will negotiate it.
Port
Guangzhou, Shenzhen, Xiamen, Shanghai, Ningbo
Lead Time :
Shipped in 15 days after payment



diesel engine / AC motor power small stone crusher for hard material



Product Description



The product description of small stone crusher

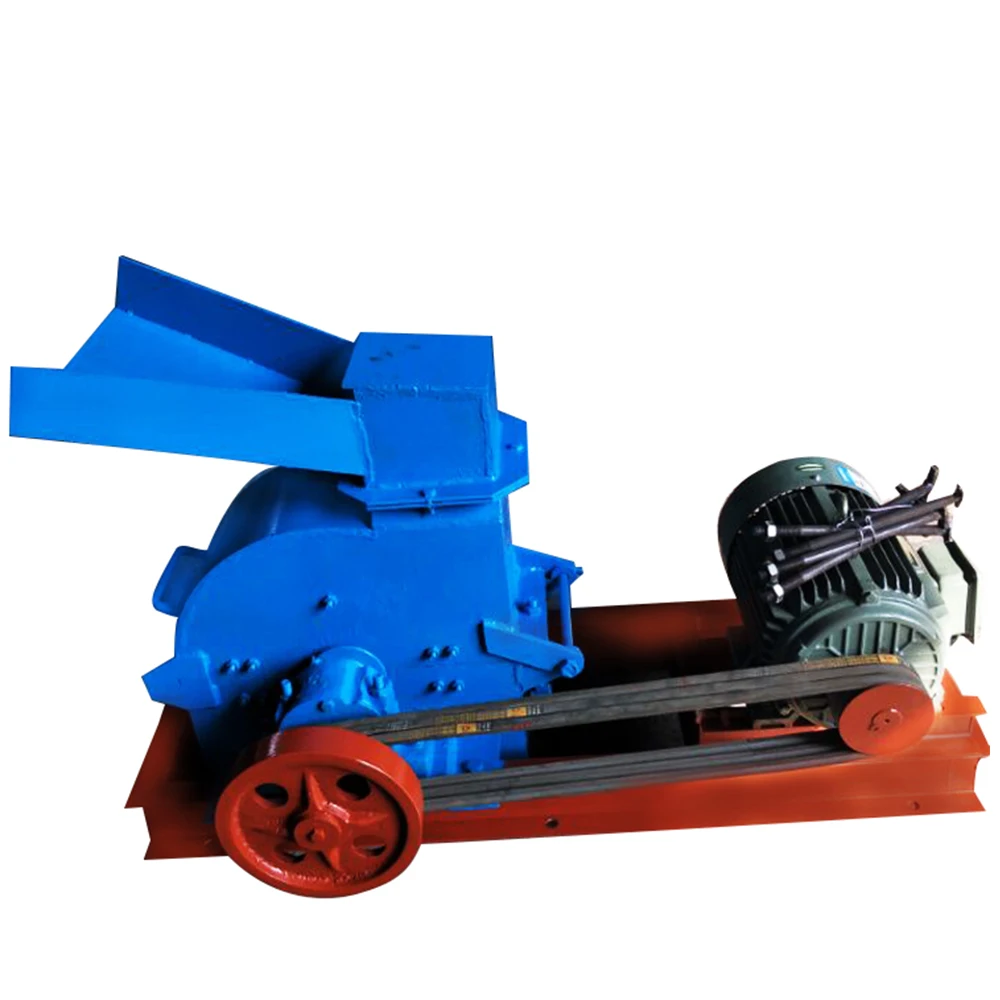

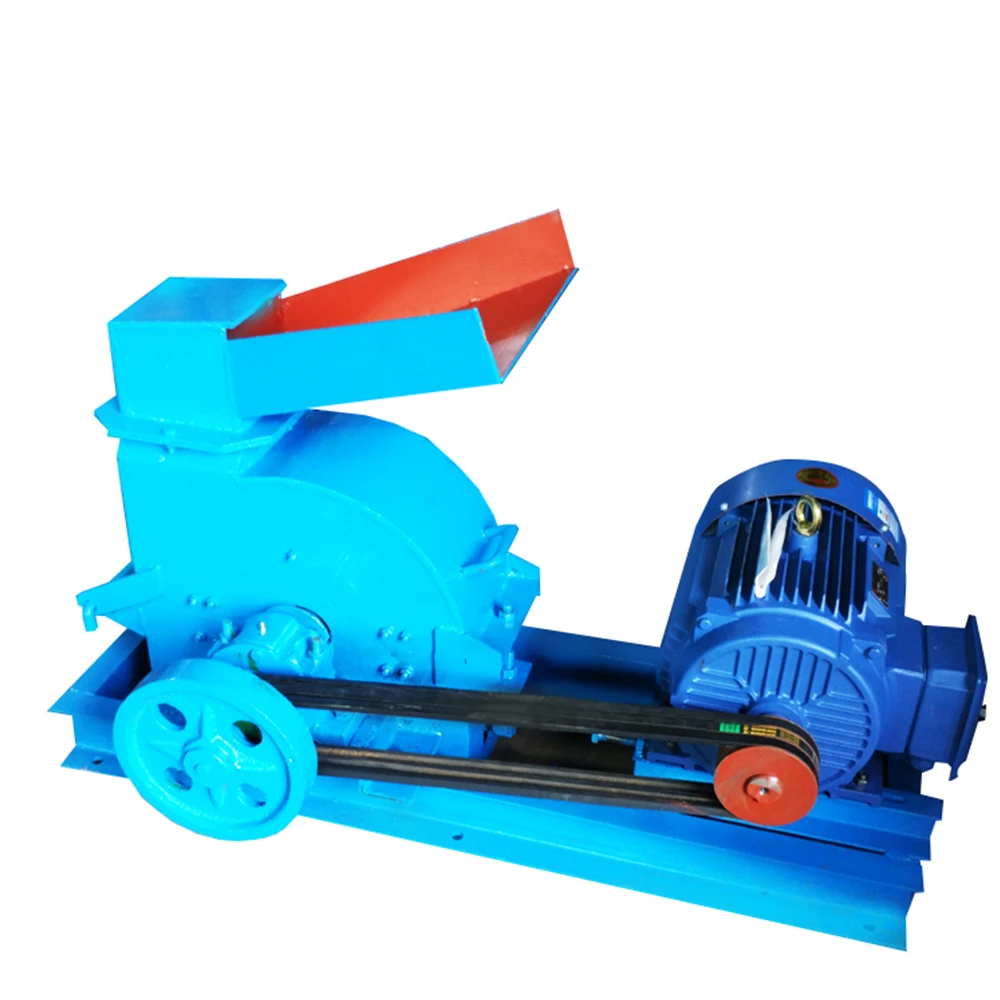

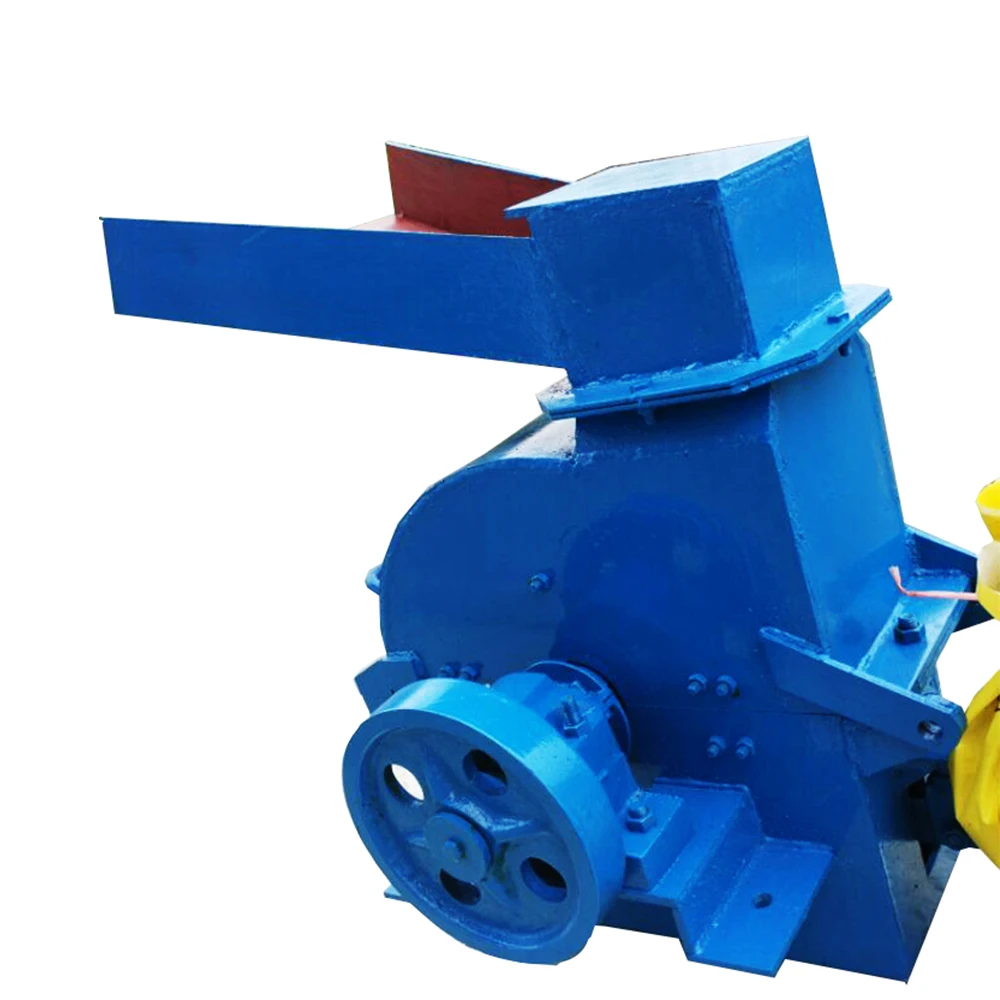

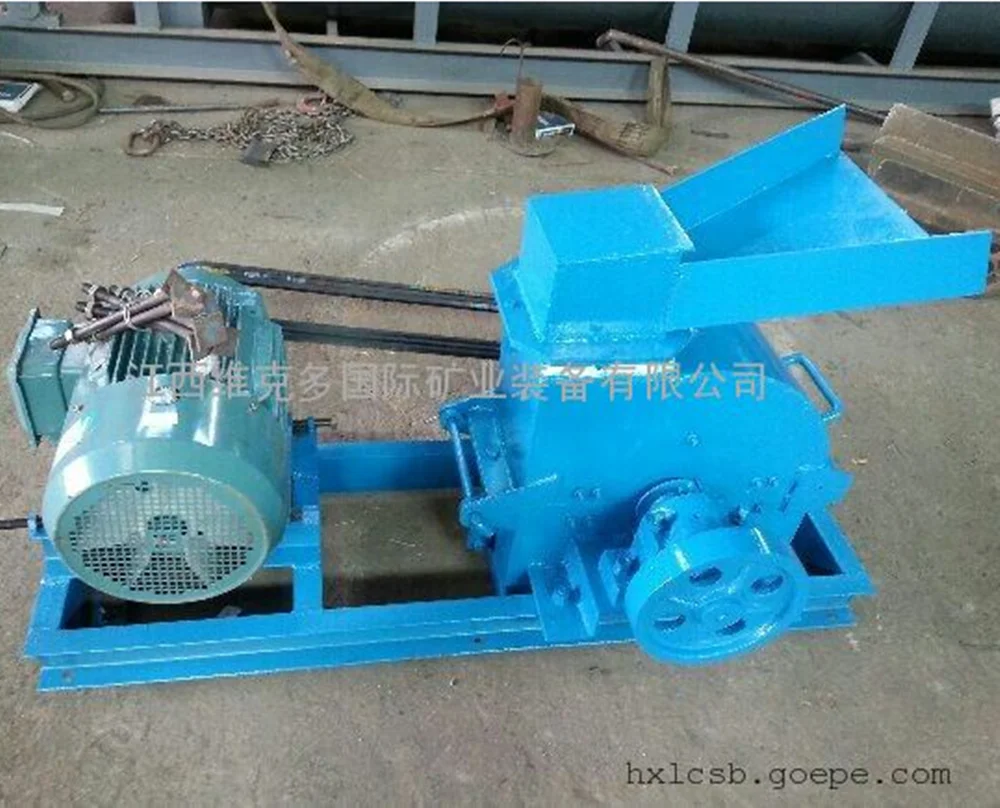

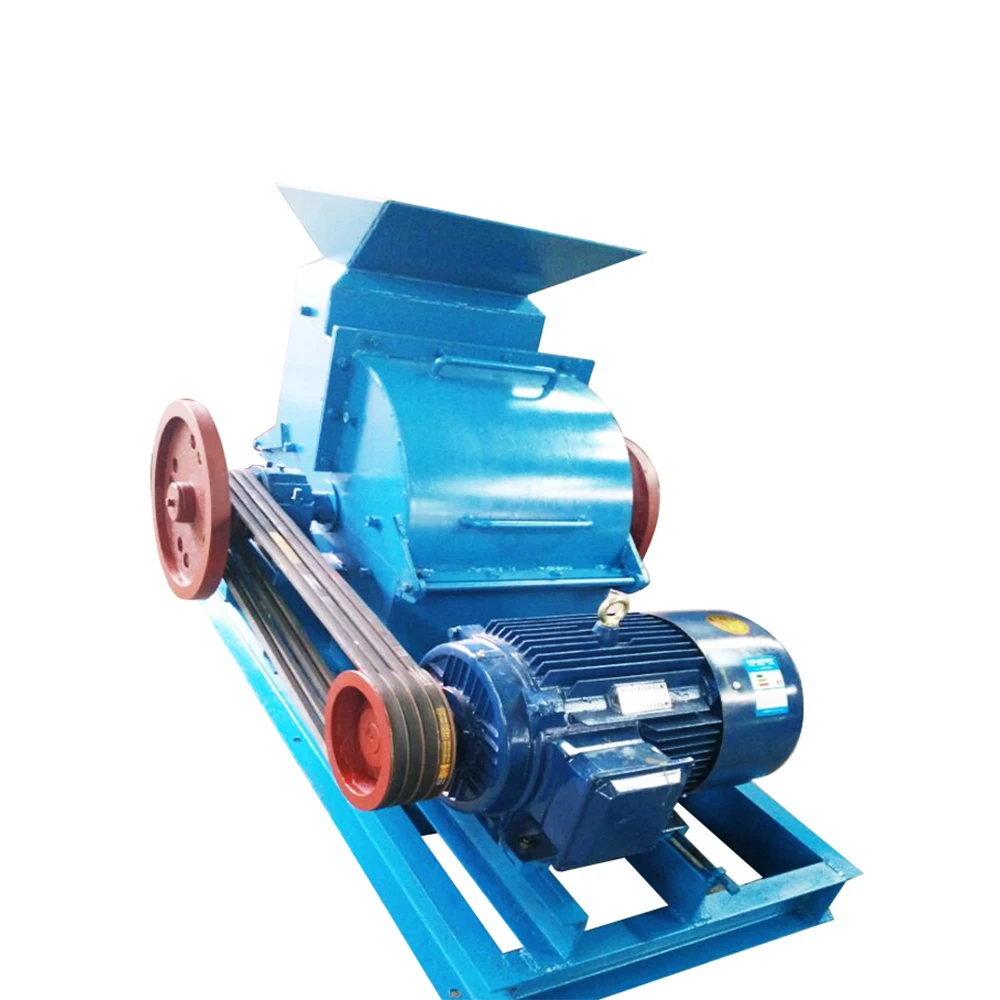

Small sand hammer crusher/Hammer mill,as one of the ore crushing equipment,is able to crush the ores below 50 mm or tailing and middling that are not released completely.The released output could be concentrated by shaking table in the next process.Being suitable for small scale nonferrous and precious metal mines like tungsten,tin,gold,the hammer mill could be the alternative of ball mill in some extent. Small sand hammer crusher is with easy installation and operation,low investment and quick effect.Its sieve opening size,minimum 1mm, can be customize configured as per the actual ore situation.

Small sand hammer crusher could be equipped with electric motor or diesel engine according to customers' requirement.



6

1

4



Working Principle



The working principle of small stone crusher

The motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushing area by the hammers for being re-crushed until they reached the required size.



9



Technical Parameters



The technical parameters of small stone crusher

ModelCapacity(t/h)Feeding size(mm)Discharge size(mm)Driving equipment
Motor(kw)Diesel engine(hp)
WKD200*5000.1-0.8<=30<=17.524
WKD11kw0.8-1.5<=30<=11130
WKD400*6001-2.5<=45<=118.545
WKD500*7001-3<=45<=122
WKD500*8001.5-4<=45<=140





Features



The features of small stone crusher

1) Simple structure in linear type ,easy in installation and maintation.

2) 1.High production and high crushing ratio.

3) Low power consumption, homogeneous particle size.

4) Low investment cost, easy management.



3
